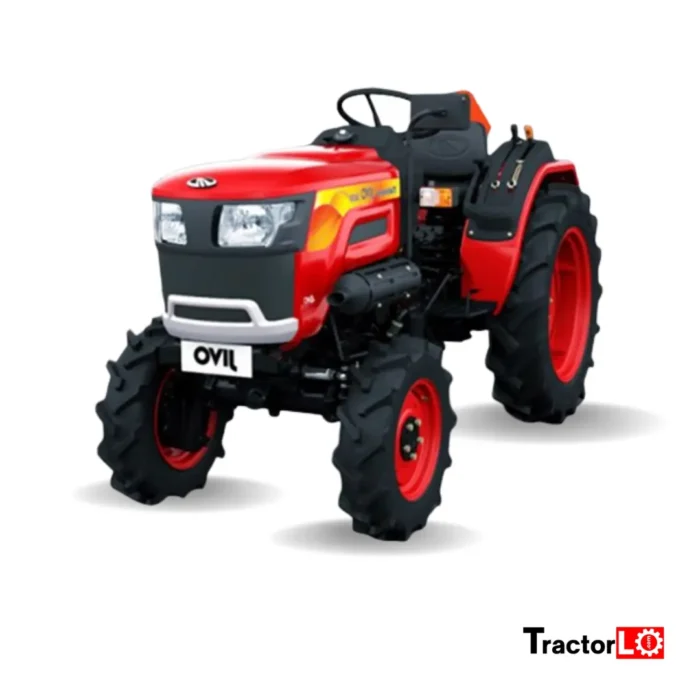

Mahindra JIVO 245 DI

Specifications:

Engine:
HP Category- 24 HP
Engine Rated RPM- 2300 RPM
No Of Cylinder- 2
Air Filter- Dry type with clog indicator
Cooling System- Water Cooled

Transmission (Gearbox):
Clutch Type- Single Clutch
Transmission Type- Sliding Mesh
Gear Lever Position- Side Shift
Speed Minimum to Maximum- 2.08 – 25 kmph
Reverse Speed Minimum to Maximum- 2.08 kmph
Forward Gears- 8
Reverse Gears-4
Rear Axle- Not explicitly specified, but built for compact tractor operations.

Brakes:
Brake Type- Oil Immersed Brakes
Turning Radius With Brake- 2300 mm (2.3 meters)

Steering:
Steering Type- Power Steering
Steering Adjustment- Not commonly specified for this model.

Power Take Off:
PTO Type- Multi-speed (6 Spline)
PTO RPM- 605, 750 RPM
PTO Power- 22 HP

Fuel Capacity:
Fuel Tank Capacity- 23 Liters

Dimension And Weight:
Weight- 950 – 1000 kg
Wheelbase- Not consistently specified in common data, but compact.
Overall Length- Not consistently specified
Tractor Length- Not consistently specified
Tractor Width- 762 mm (30 inches)
Ground Clearance- Not specified

Lifting Capacity (Hydraulics):
Lift Capasity In Kg- 750 KG
3 Point Linkage- ADDC
Hydraulics- Advanced and High Precision Hydraulics

Tyre Size:
Front Size- 6.00 x 14
Rear Size- 8.3 x 24

Additional Features:
Drive Type- 4WD
Accessories- Tools, Top Link, Bumper, Drawbar
Warranty- 5000 Hours / 5 Years
