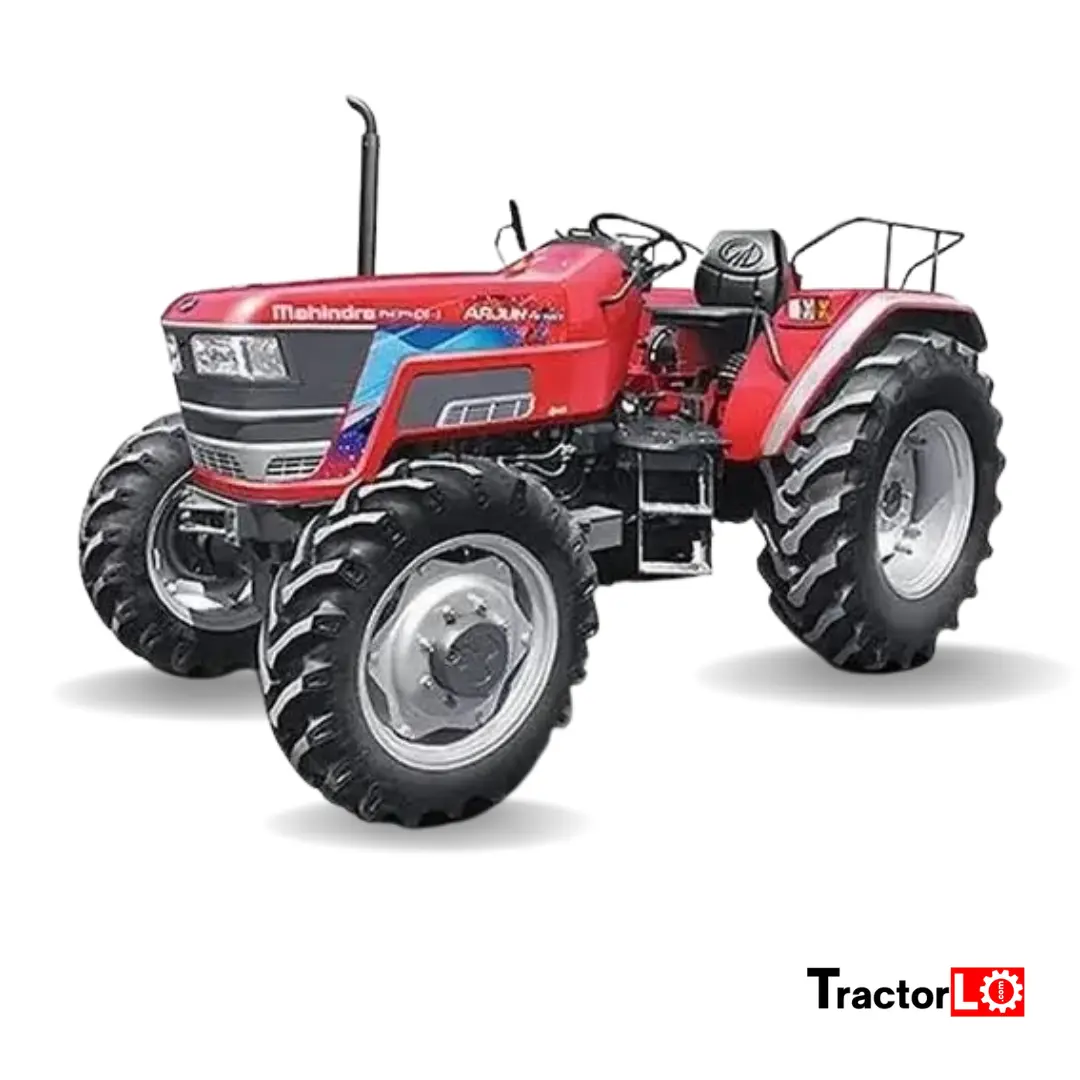

Mahindra Arjun Ultra 1 605 Di

Specifications:

Engine:

HP Category- 57 HP
Engine Rated RPM- 2100 RPM
No Of Cylinder- 4
Air Filter- Dry type with clog indicator
Cooling System- Water Cooled / Coolant cooled with overflow reservoir, Naturally aspirated

Transmission (Gearbox):
Clutch Type- Dual / Single Clutch
Transmission Type- Full Constant Mesh
Gear Lever Position- Side Shift / Center Shift
Speed Minimum to Maximum- 2.8 – 31.0 kmph
Reverse Speed Minimum to Maximum- 2.6 – 12.2 kmph
Forward Gears- 8
Reverse Gears- 2
Rear Axle- Not Specified

Brakes:
Brake Type- Oil Immersed Brakes
Turning Radius With Brake- 3400 mm

Steering:
Steering Type- Power Steering
Steering Adjustment- Not Specified

Power Take Off:
PTO Type- 6 Spline
PTO RPM- 540 RPM
PTO Power- 48.45 HP

Fuel Capacity:
Fuel Tank Capacity- 65 Liters

Dimension And Weight:
Weight- 2450 KG
Wheelbase- 2125 MM
Overall Length- 3480 MM
Tractor Length- 3480 MM
Tractor Width- 1965 MM
Ground Clearance- 445 MM

Lifting Capacity (Hydraulics):
Lift Capasity In Kg- 1850 KG
3 Point Linkage- Category – II with ADDC
Hydraulics- Advanced and High Precision Hydraulics

Tyre Size:
Front Size- 7.50 x 16
Rear Size- 16.9 x 28

Additional Features:
Drive Type- 2WD
Accessories- Tools, Top Link, Canopy, Hook, Bumper, Drawbar, Ballast Weight
Warranty- 2000 Hours or 2 Years
