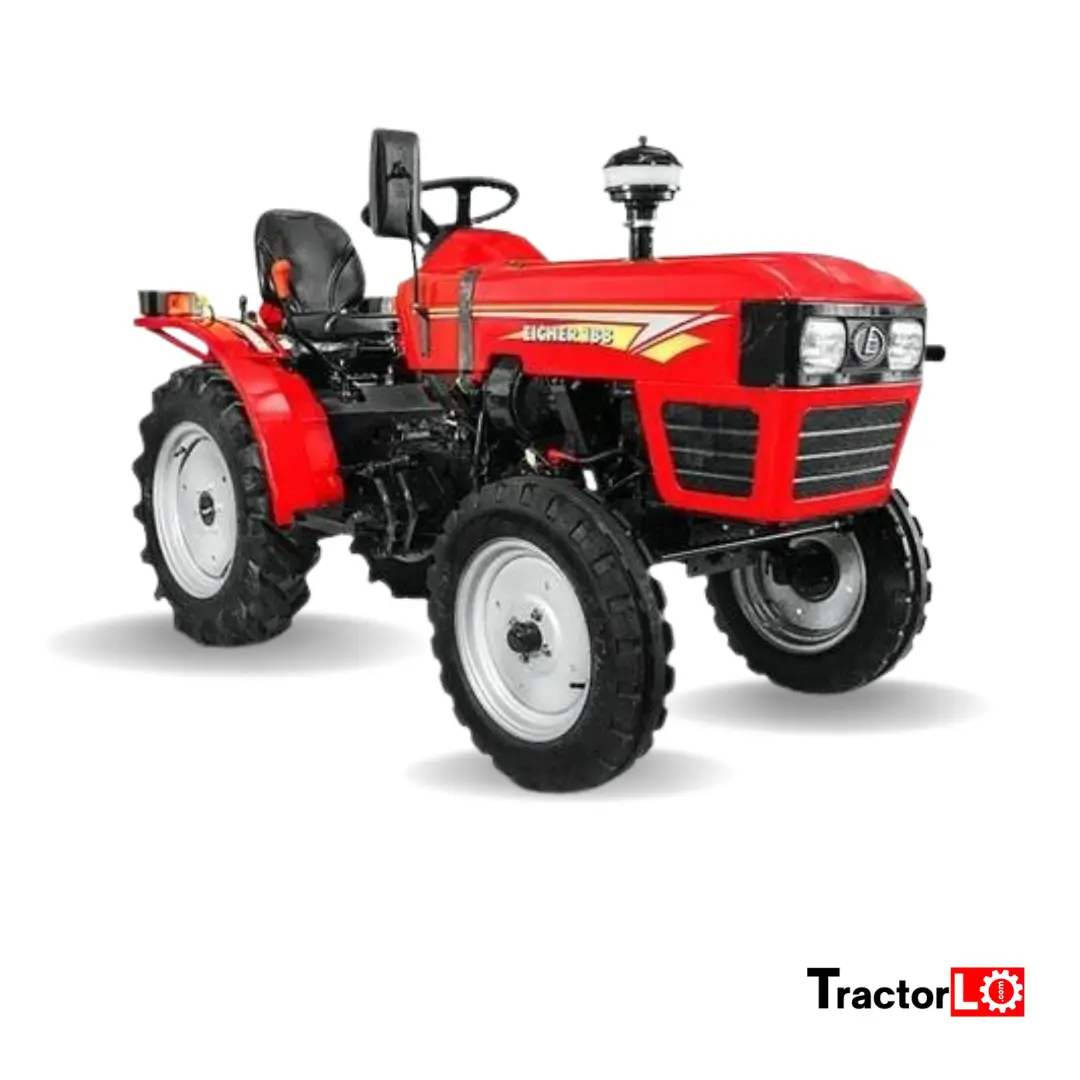

Eicher 188

Specifications:

Engine:
HP Category- 18 HP
Engine Rated RPM- 2700 RPM No Of Cylinder- 1
Air Filter- Dry Type
Cooling System- Water Cooled

Transmission (Gearbox):
Clutch Type- Single
Transmission Type- Sliding Mesh
Gear Lever Position- Center Shift
Speed Minimum to Maximum- 20.3 kmph (approx.)
Reverse Speed Minimum to Maximum- 7.6 kmph (approx.)
Forward Gears- 8
Reverse Gears- 2
Rear Axle- Sliding gear

Brakes:
Brake Type- Dry Internal Exp. Shoe (Drum)
Turning Radius With Brake- 2.4 m (approx.)

Steering:
Steering Type- Mechanical Steering
Steering Adjustment- No

Power Take Off:
PTO Type- Live, Six-spline shaft
PTO RPM- 540 RPM
PTO Power- 15.3 HP

Fuel Capacity:
Fuel Tank Capacity- 28 Litres

Dimension And Weight:
Weight- 825 kg (approx.) Wheelbase- 1420 mm Overall Length- 2670 mm Tractor Length- 2670 mm Tractor Width- 1065 mm Ground Clearance- 260 mm

Lifting Capacity (Hydraulics):
Lift Capasity In Kg- 770 kg
3 Point Linkage- Cat-I
Hydraulics- Position Control

Tyre Size:
Front Size- 5.00 x 12
Rear Size- 8.00 x 18

Additional Features:
Drive Type- 2WD
Accessories- Tools, Bumper, Drawbar

Warranty- 2 Years or 2000 Hours
